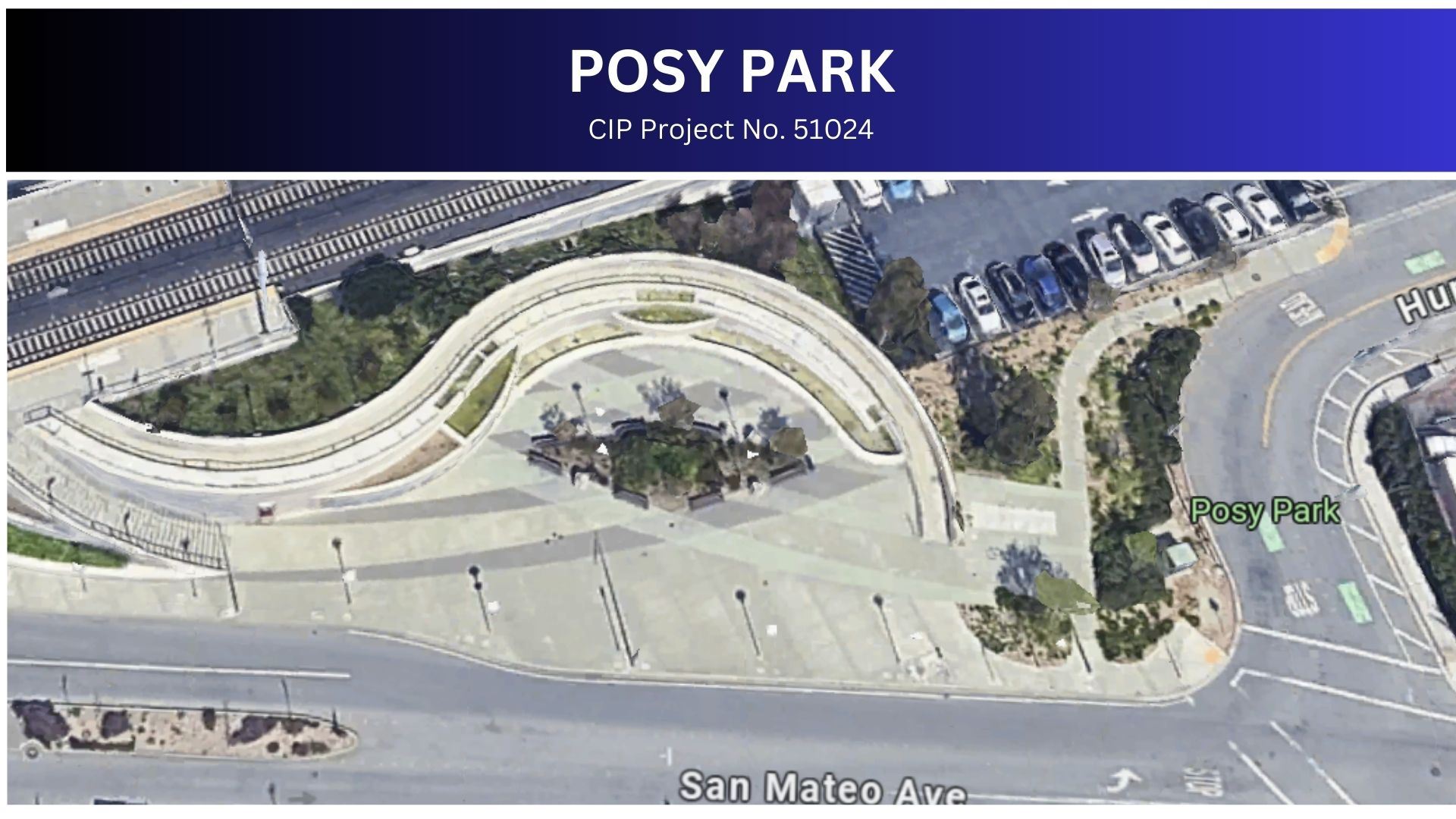

Posy Park

As part of the Caltrain San Bruno Grade Separation project in late 2010, Posy Park was relocated, and a water feature was installed as part of the overall project.

Shortly following completion of the Grade Separation Project, several noticeable defects appeared in the water feature. Rust spots from exposed rebar and various cracks in the concrete are easily visible throughout the fountain's painted concrete.  Inspection of the fountain water proofing showed signs of bubbling and peeling thus exposing the concrete underneath. A leak was subsequently found. As a result of these defects, the fountain has been inoperative for the past 4 to 5 years.

The City was awarded $200,000 in Measure K funding from The County of San Mateo in May 2022 with a deadline to expend the funds by December 31, 2024.  Design work for this project will begin in early 2024 and the project is expected to be completed in FY2025-26.   This project will repair the fountain waterproofing and structural damage; repurpose the fountain into landscaping; incorporate a mural onto the fountain structure; and provide additional seating and bike storage, as well as provide other amenities.

  1. 2025
  2. 2024
  3. 2023
  4. 2021
  5. Project Photos

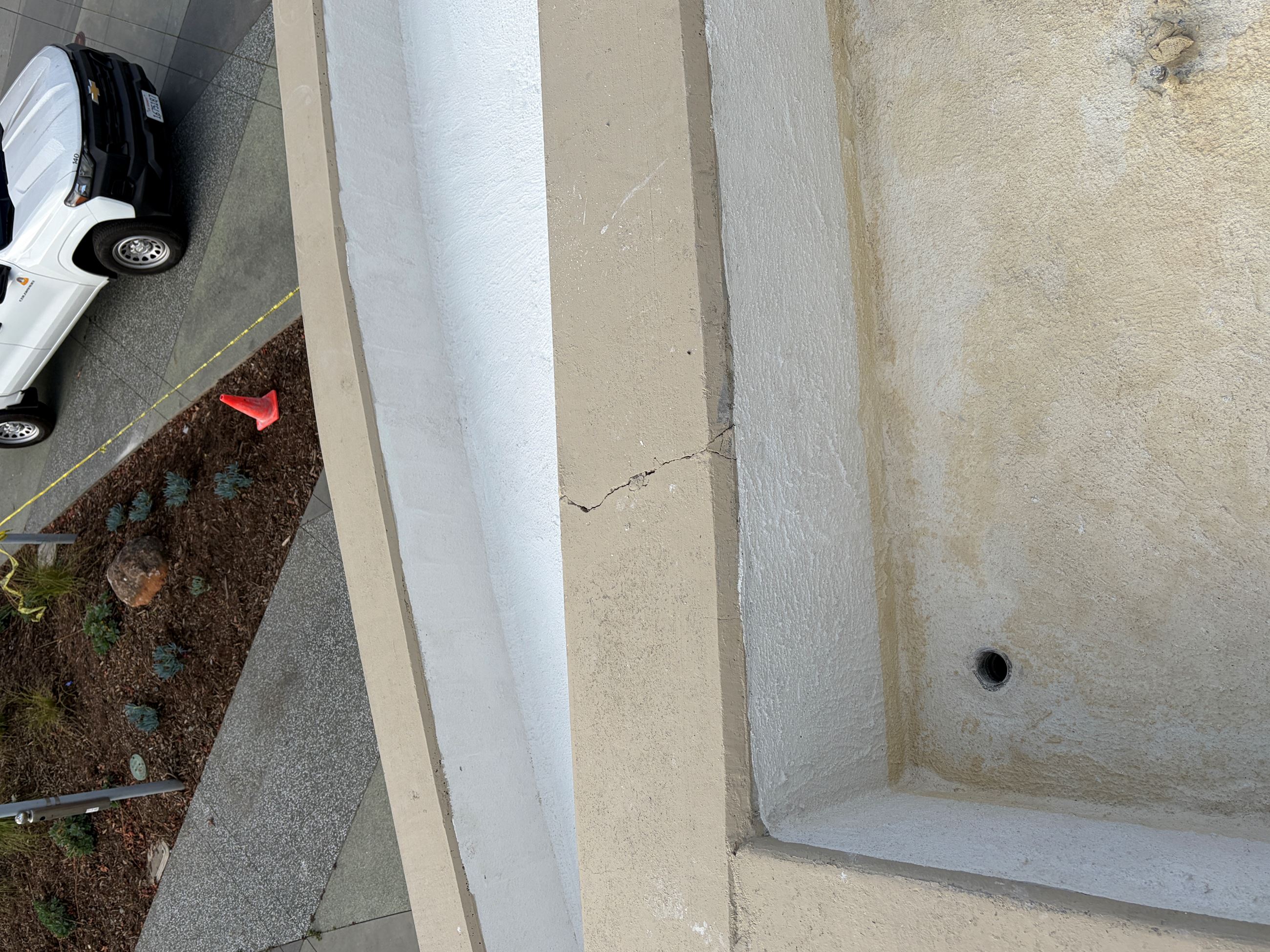

Posey Park continued with progress on site furnishings and fountain repairs. WH conducted a site walkthrough to review the condition of the newly applied membrane finish and exterior paint; the exterior paint was found to be in good condition with even coverage and a close match to the existing color. Some cracking was observed in the fountain’s membrane finish, primarily in corner areas, and Burkett’s crew returned to apply an additional coat to address the issue. The Marina crew completed installation of the new site furnishings, including planters, overflow systems, soil placement, and the final trash receptacle, with all furnishings now installed on site. Shrubs for the planters were delivered but planting has been temporarily postponed pending confirmation of the final drainage approach by the project architect. Additionally, WaterWorks continued fountain system improvements by installing valves to regulate water flow between basins and completing installation of the fountain nozzle covers, with minor adjustments made to ensure proper fit following the membrane application. The remaining bench seat separator has been ordered and is expected to be delivered and installed in early March.

During the month of January, the contractor continued making steady progress on site improvements. Rebar was installed at two of the three basin locations and successfully passed City inspection. Concrete placement began at one basin, with efforts underway to complete all three basins as additional concrete becomes available. Plumbing to the top basin was pressure tested and passed inspection, with visual confirmation documented for the project record. Following completion of the concrete work, the contractor will proceed with installing waterproof membrane at several basins and two lower retention areas. Remaining tasks include crack repairs on vertical surfaces, installation of stainless steel weirs at the spillways, cleanup of the mechanical room prior to demobilization, and final painting of vertical surfaces and stem walls. Based on current progress, the contractor remains on schedule to complete the work by the end of next week, with continued monitoring and documentation by WHB.

  1. 1 IMG_3181
  2. 2 IMG_3186
  3. 3 IMG_3189
  4. 4 IMG_3190
  5. 5 IMG_3192
  6. 6 IMG_3194
  7. 7 IMG_3195
  8. 8 IMG_3198
  9. 9 IMG_3200
  10. 10 IMG_3204
  11. 11 IMG_3206
  12. 12 260210 Bench 2
